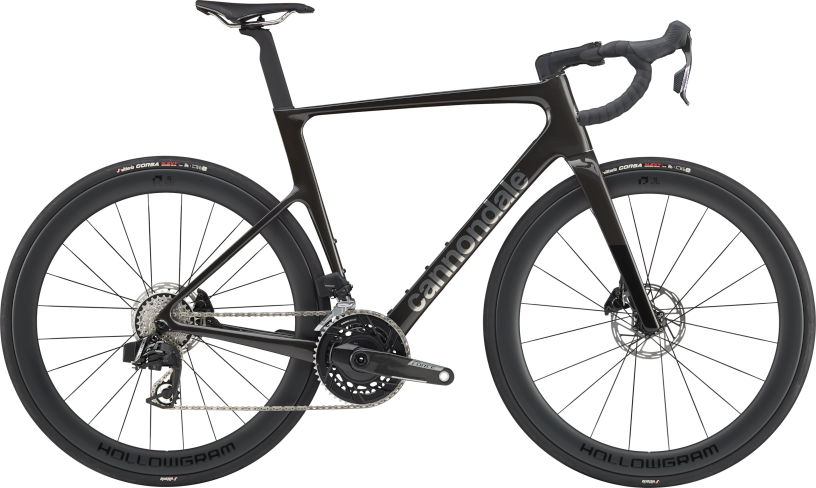

SuperSix EVO 1 Raw

Details

• Platform

  SuperSix EVO
• Model Name

  SuperSix EVO 1
• Model Code

  C11035U

Frameset

• Frame

  SuperSix EVO Carbon, integrated cable routing w/ Switchplate, 12x142 Syntace thru-axle, BSA 68mm threaded BB, flat mount disc, integrated seat binder, SmartSense compatible
• Fork

  SuperSix EVO Carbon, integrated crown race, 12x100mm Syntace thru-axle, flat mount disc, internal routing, 1-1/8" to 1-1/4" Delta steerer, 55mm offset (44-54cm), 45mm offset (56-61cm)
• Headset

  Integrated, 1-1/8" - 1-1/4"

Drivetrain

• Rear Derailleur

  SRAM Force AXS
• Front Derailleur

  SRAM Force AXS, braze-on
• Shifters

  SRAM Force AXS, 12-speed
• Chain

  SRAM Force, 12-speed
• Crank

  SRAM Force AXS Power Meter, 48/35
• Rear Cogs

  SRAM Force XG-1270, 10-33, 12-speed
• Bottom Bracket

  SRAM DUB BSA

Brakes

• Brakes

  SRAM Force AXS hydraulic disc, 160/160mm PaceLine centerlock rotors
• Brake Levers

  SRAM Force AXS hydraulic disc

Wheels

• Front Hub

  HollowGram, sealed bearing 12x100mm centerlock
• Rear Hub

  HollowGram, 12x142mm centerlock w/ DT Swiss 240 internals
• Rims

  HollowGram R-S 50, Carbon, 20h front, 24h rear, 50mm deep, 21mm inner width, tubeless ready
• Spokes

  Formula Grand Forza, Double Butted, straight pull
• Tire Size

  28
• Wheel Size

  700c
• Tires

  Vittoria Corsa N.EXT, 700x28c, tubeless ready
• Front Tire

  Vittoria Corsa N.EXT, 700x28c, tubeless ready
• Rear Tire

  Vittoria Corsa N.EXT, 700x28c, tubeless ready

Components

• Handlebar

  Vision Trimax Carbon Aero
• Stem

  Cannondale C1 Conceal, Alloy, 31.8, -6°
• Grips

  Cannondale Bar Tape, 3.5mm
• Saddle

  Prologo Dimension TiRox NDR
• Seatpost

  Cannondale C1 Aero 40 Carbon, 0mm offset (44-48cm), 20mm offset (51-61cm)

Extra

• Extra 1

  C11035U
